    Vendor:MOZA - Racing

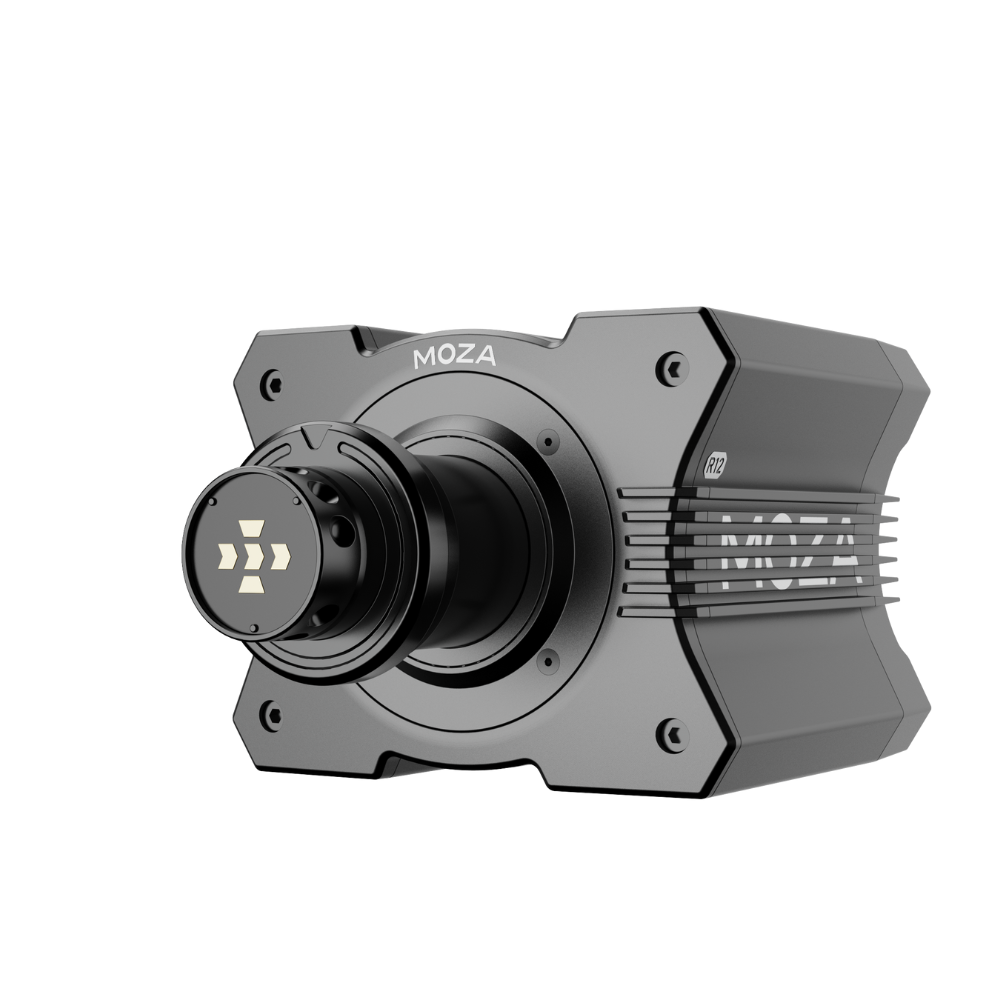

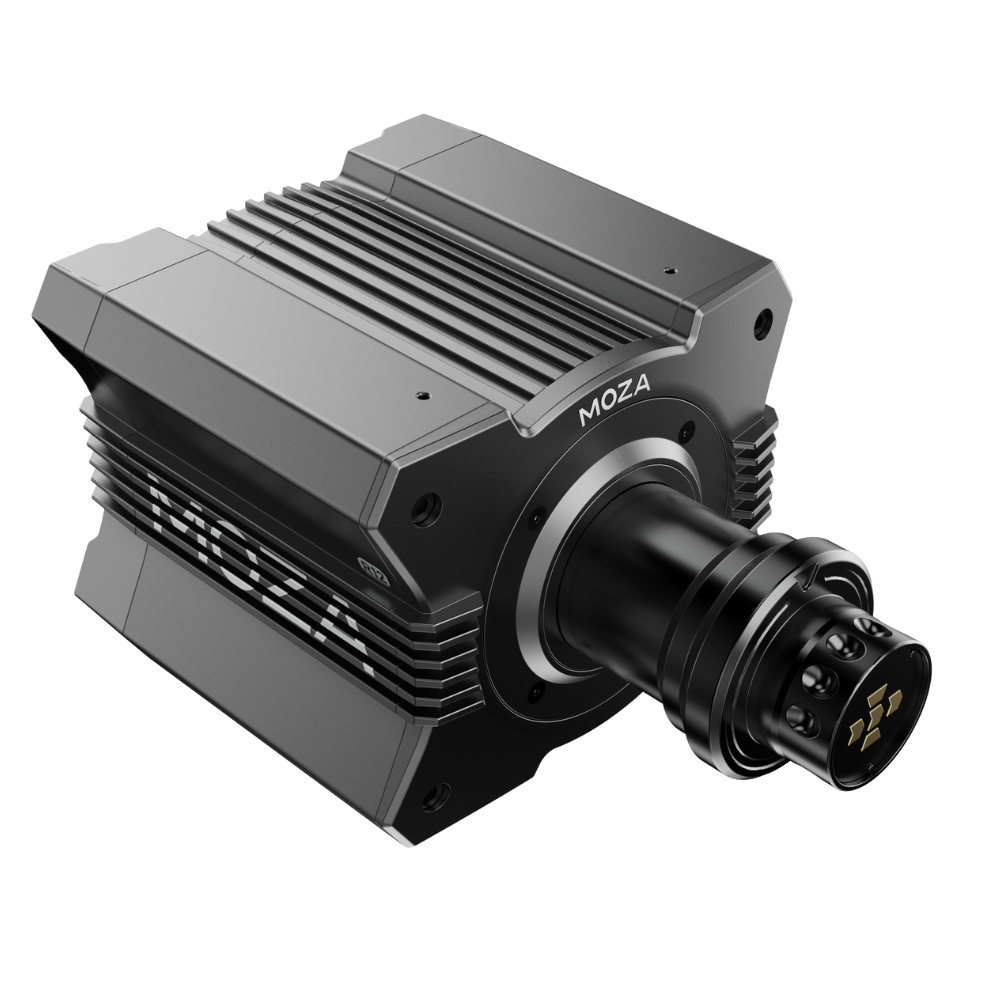

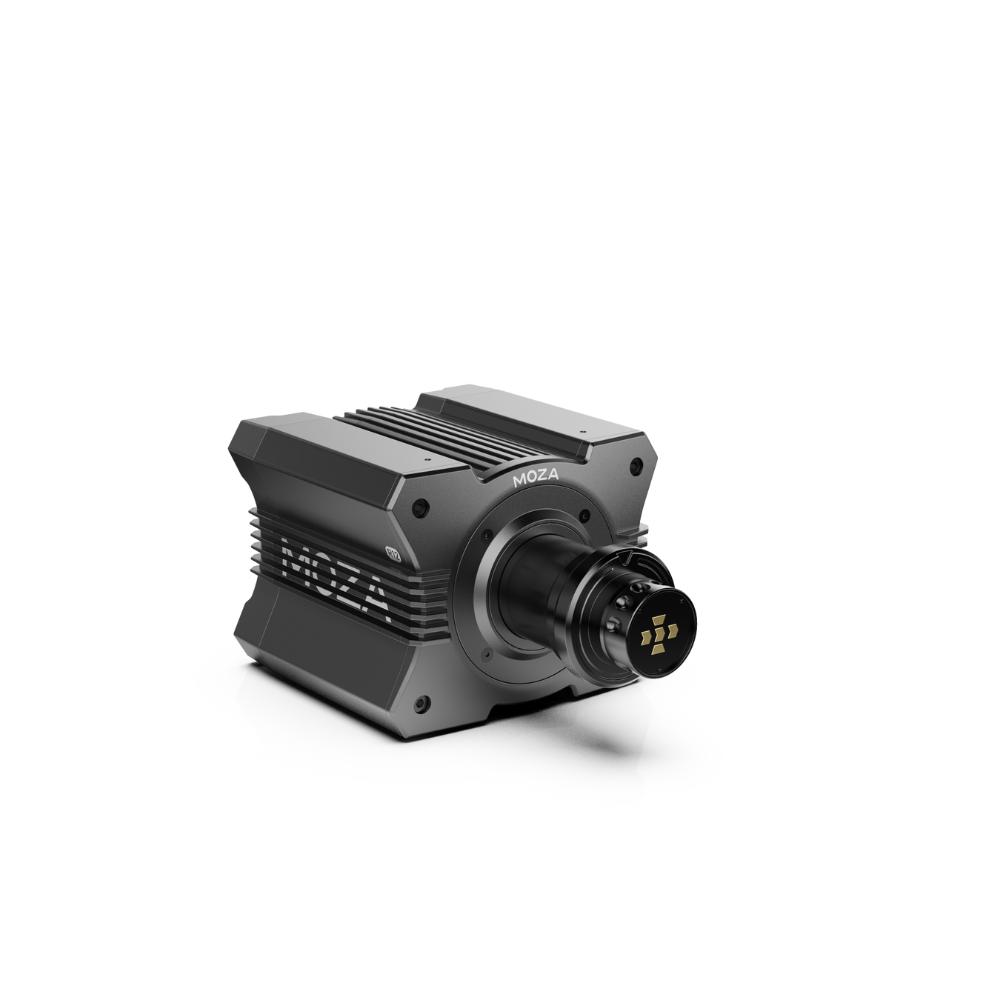

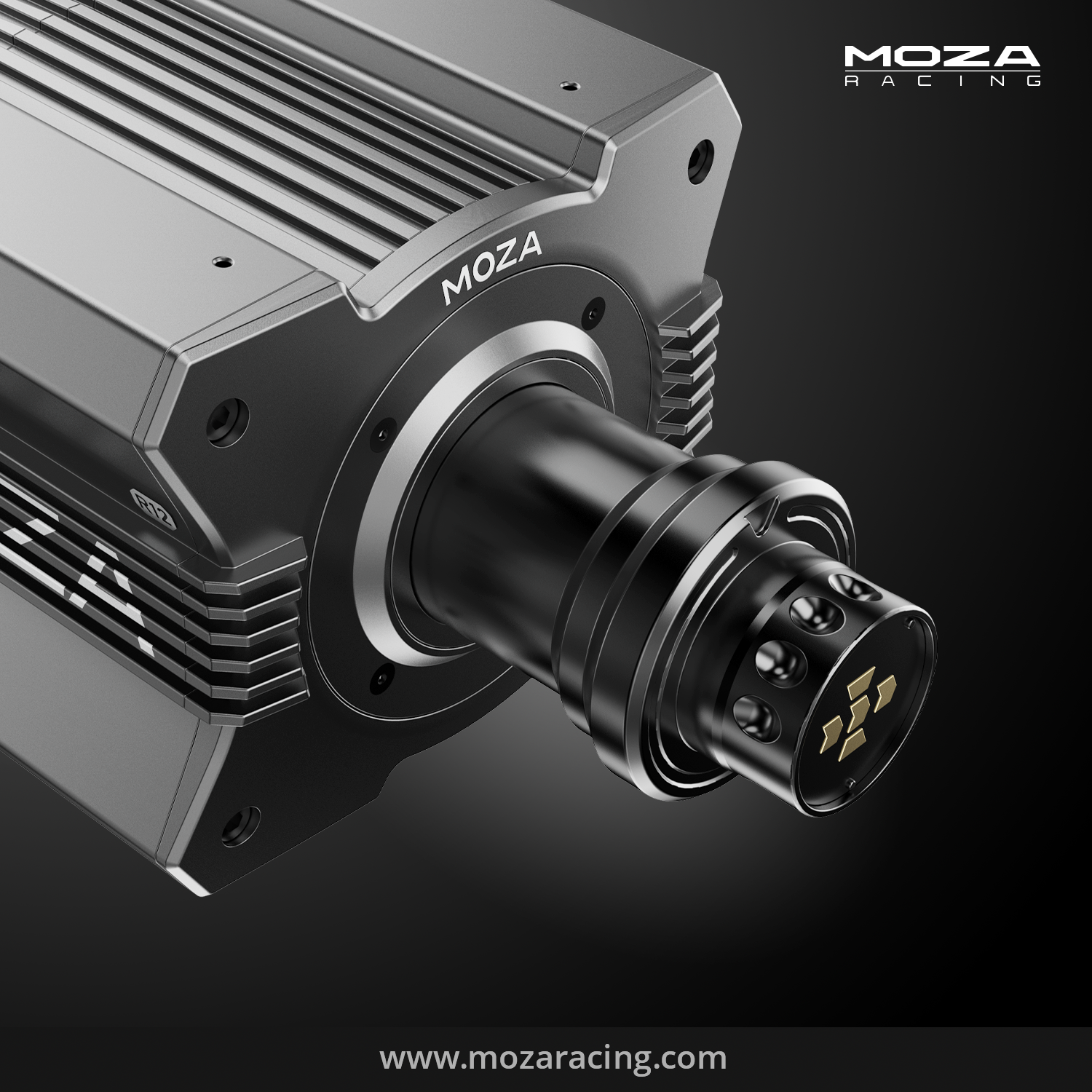

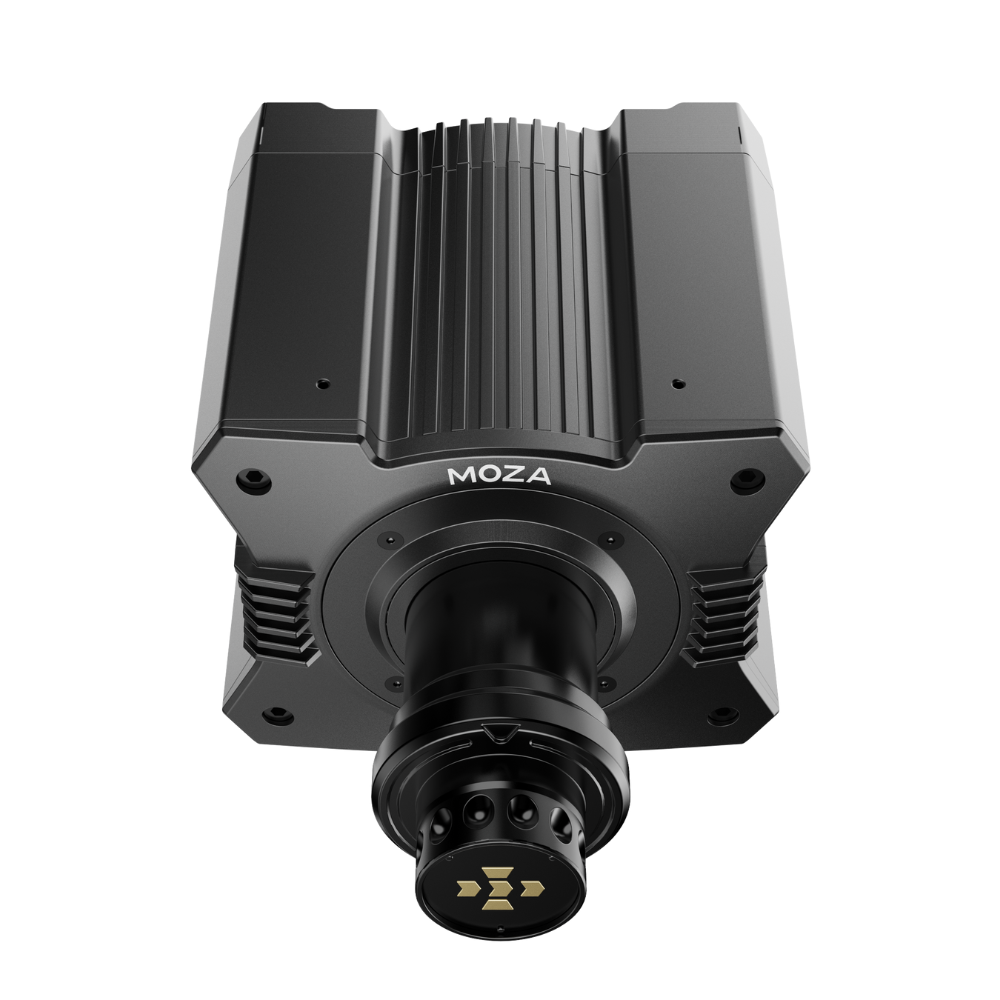

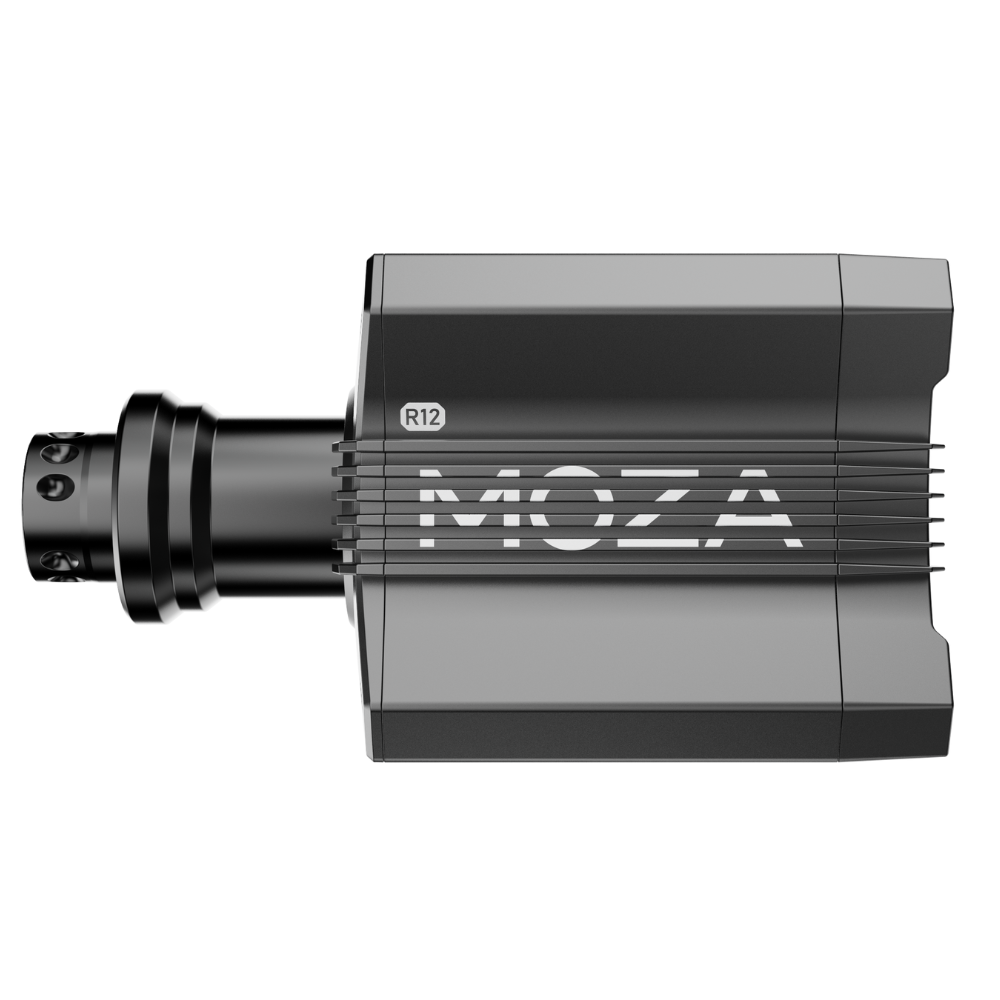

    MOZA R12 V2 Direct Drive Wheel Base

    Sale price$359.00Regular price $429.00




    MOZA R12 DIRECT DRIVE

    The MOZA R12 is a 12 Nm direct drive system tailor-made for simulation, delivering a stable and realistic torque output of 12 Nm. It flawlessly replicates the steering force found in road and race cars, providing detailed and immersive feedback from the virtual vehicle and track surface directly to your hands.

    The R12 motor incorporates cutting-edge technology derived from the R21 base, utilizing a unique slanted-pole design. The rotor is intelligently segmented into three sections with precisely calculated angles, resulting in a revolutionary motor design that significantly reduces cogging torque, torque ripple, electromagnetic vibration, and noise levels compared to conventional motors. With its innovative design, the R12 motor runs seamlessly and quietly, offering unparalleled smoothness and minimal noise and vibration during operation.

    1. The Maximum & Minimum design philosophy
    The R12 DD base is designed with a high-slot fill rate, utilizing high-permeability magnetic cores and high-strength neodymium iron boron magnets to achieve high energy and low current density characteristics. With its compact body and low power consumption, it delivers maximum torque output, significantly enhancing convenience and temperature control performance.

    2. Ultra-low torque Ripple
    The motor in the R12 DD base utilizes a 18-slot, 16-pole high-slot design, which features the highest number of poles in its class. This design results in ultra-low torque ripple and exceptional shock absorption performance, delivering a smooth and seamless steering experience.

    3. Wide high-torque speed range
    The R12 DD base utilizes a low back-electromotive force design, which allows for a broad speed range even during high-torque operation. This feature enables high torque output at high speeds and eliminates torque dropouts when quickly correcting direction, ensuring a smooth and consistent steering experience.



    Wheelbase Specs

    • Drive Type: Direct Drive
    • Max Wheel Rotation: Limitless
    • Housing Material: Aluminum
    • Housing Color: Black
    • Peak Torque: 12 Nm
    • Peak Power: 216W
    • Input Voltage: 110V~220V AC —> 36V DC
    • USB Refresh Rate: 1000 Hz
    • App Functions: Supported
    • Quick Release: Supported

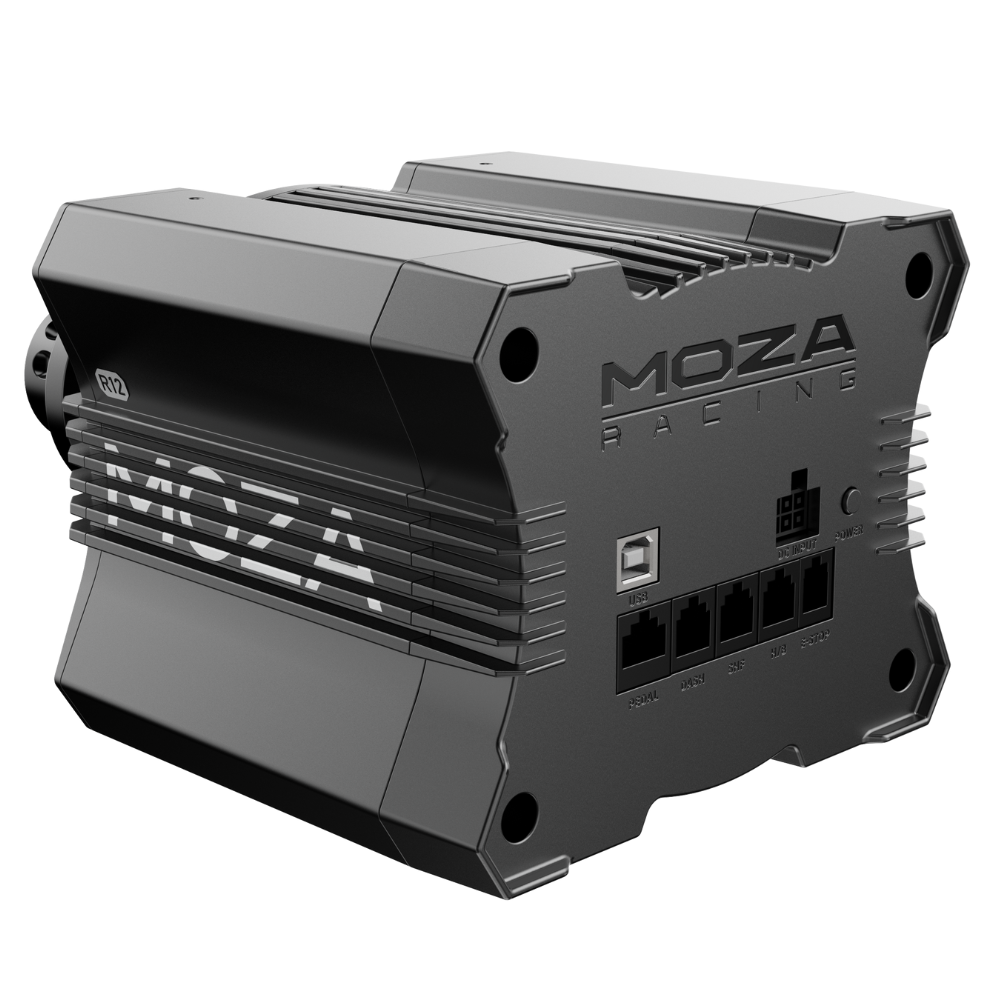

    • Connection Ports: Power, USB, Pedal, Dash, Shifter, Handbrake, E-stop
    • Accessories: User manual, power adapter, cable, tool kit
    • Fixing Method: 4-hole bottom mount
    • Desk Clamp: Optional
    • E-stop: Optional
    • Online Firmware Update: Supported



    Software Features



    • Setup and Save Profile Presets: Customize your settings to match your car, track, and racing conditions.
    • Adjust Steering Range: Fine-tune the wheel's rotation limits to your preference.
    • Bumpstop Hardness and Range: Modify the resistance at the wheel's rotation limits.
    • Adjust Overall Force: Tailor the intensity of the force feedback to suit your driving style.
    • Basic Damping: Control the wheel's resistance to motion for smoother handling.
    • Basic Smoothing: Reduce feedback noise for a cleaner force feedback experience.



    Dimensions

    Width: 8.89 inches
    Height: 6.17 inches
    Depth: 4.88 inches

    WEIGHT: 16.5347

    MOZA R12 V2 Direct Drive Wheel Base

    MOZA R12 V2 Direct Drive Wheel Base

    Sale price$359.00Regular price $429.00
