Vendor:MOZA - Racing

MOZA R3 Racing Wheel and Pedals

$339.00

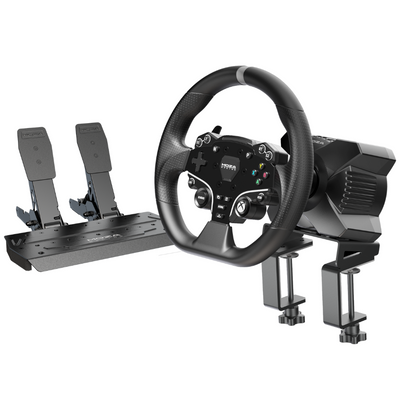

MOZA RACING R3 BUNDLE

AVAILABLE NOW!


MOZA's First XBOX Licensed Racing Bundle

MOZA Racing have collaborated with Microsoft to create our first officially licensed, fully plug and play bundle for Xbox Series X|S and Xbox One.



Precise 3.9 Nm Direct-Drive Powerhouse

The MOZA R3’s 3.9Nm motor consistently delivers class leading direct drive power and precisely detailed force feedback easily outperforming traditional 3Nm bases.



Compact Adaptable Design

From desktop to fully dedicated rigs the R3’s compact design can be easily adapted to fit any scenario regardless of available space.



High-precision Craftsmanship

With a base crafted from aviation-grade aluminum alloy an ISF PU grips steering wheel and high-strength steel pedals. The R3 sets the benchmark for entry-level racing.


Full Compatibility with Mainstream Games

Compatible with dozens of mainstream simulation racing games, including Forza Horizon, Project CARS, F1, DiRT Rally, and Assetto Corsa series.

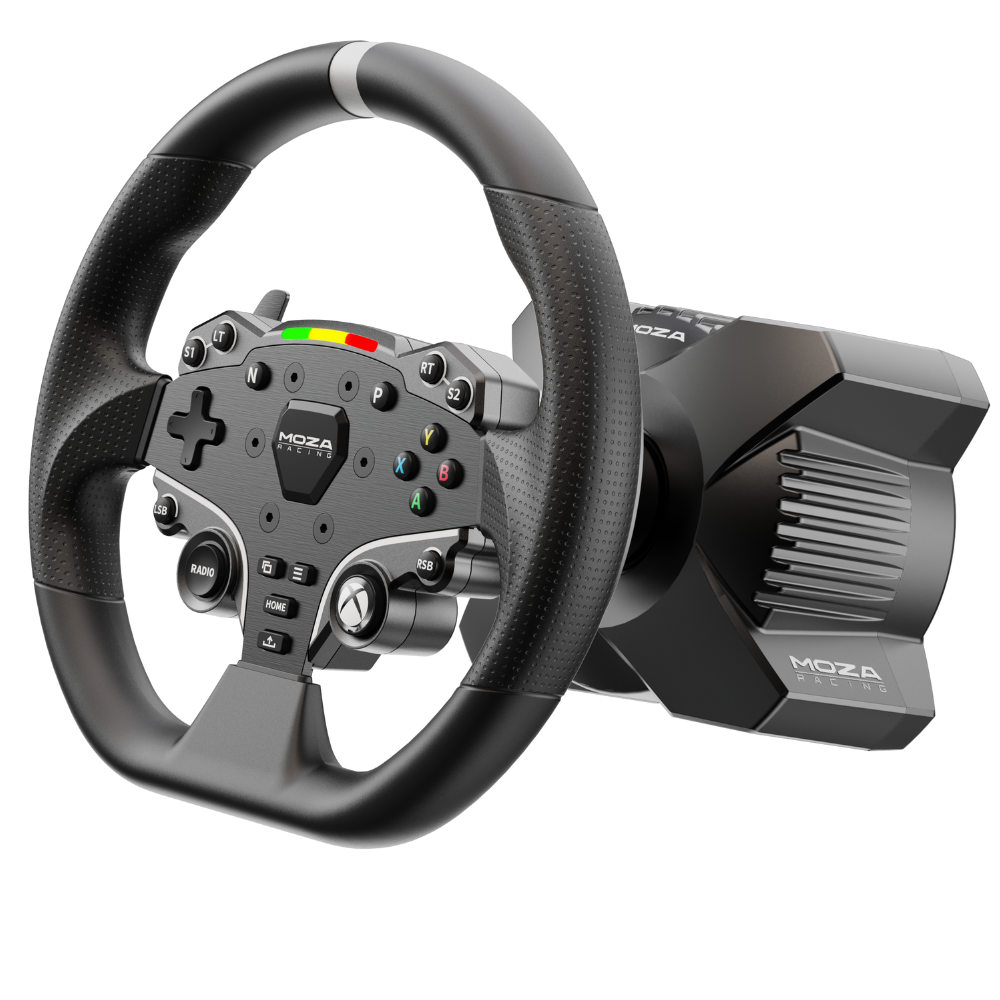

MOZA R3 DD Wheelbase

3.9 Nm DD Servo Motor

The direct drive servo motor delivers a stable and realistic torque output of 3.9 Nm. It flawlessly replicates the steering force found in road and race cars, providing detailed and immersive feedback direct to your hands.



Innovative X Shape Design

The MOZA R3 features an innovative X shape design, combining striking aesthetics with a unified motor housing for improved cooling efficiency and lasting performance.


Aviation-grade Aluminum

Crafted entirely from aviation-grade aluminum alloy, the R3 base boasts a new sleek appearance while ensuring superb durability and endurance.


The Maximum & Minimum Philosophy

The MOZA R3’s compact body and ultra low power consumption delivers maximum torque and excellent temperature control performance.


Ultra-low Torque Ripple
& Groove Torque

Our engineers have achieved the ultimate steering force feedback thanks to the R3’s ultra low torque ripple and groove characteristics.


Intelligent Temperature Control System

Our advanced intelligent temperature control system delivers a constant and reliable performance under all conditions.


Specs

Platform

  • PC & Xbox

Drive Type

  • Direct Drive

Max Wheel Rotation

  • Limitless

Housing Material

  • Aviation Grade Aluminum Alloy

Color

  • Black

Peak Torque

  • 3.9 Nm

Rated Power

  • 72W

Input Voltage

  • 110V~220V AC → 12V DC

Encoder Resolution

  • 15 bits

USB Refresh Rate

  • 1000Hz

APP Functionality

  • Supported

Quick Release

  • Supported

Connection Ports

  • Power, DC Input, Pedal, USB, Dash

Accessories

  • Manual and Warranty Card
  • Power Supply
  • Data Cable
  • Toolkit

Mounting Method

  • 4 holes on the bottom

Table Clamp

  • Included

Online Firmware Upgrade

  • Supported







SPECS

R3 Wheelbase
 Platform For XBOX Series X|S, XBOX ONE, AND PC
Drive Type Direct Drive
Max Wheel Rotation Limitless
Housing Material Aviation Aluminum Alloy
Color Black
Peak Torque 3.9 Nm
Rated Power 72W
Input Voltage 110V~220V AC —>12V DC
Encoder Resolution 15 bits
USB Refresh Rate 1000Hz
APP Functionality Supported
Quick Release Supported
Connection Ports Power, DC Input, Pedal, USB, Dash
Accessories Manual and Warranty Card, Power Supply, Data Cable, Toolkit
Mounting Method 4 holes on the bottom
Table Clamp Included
Online Firmware Upgrade Supported

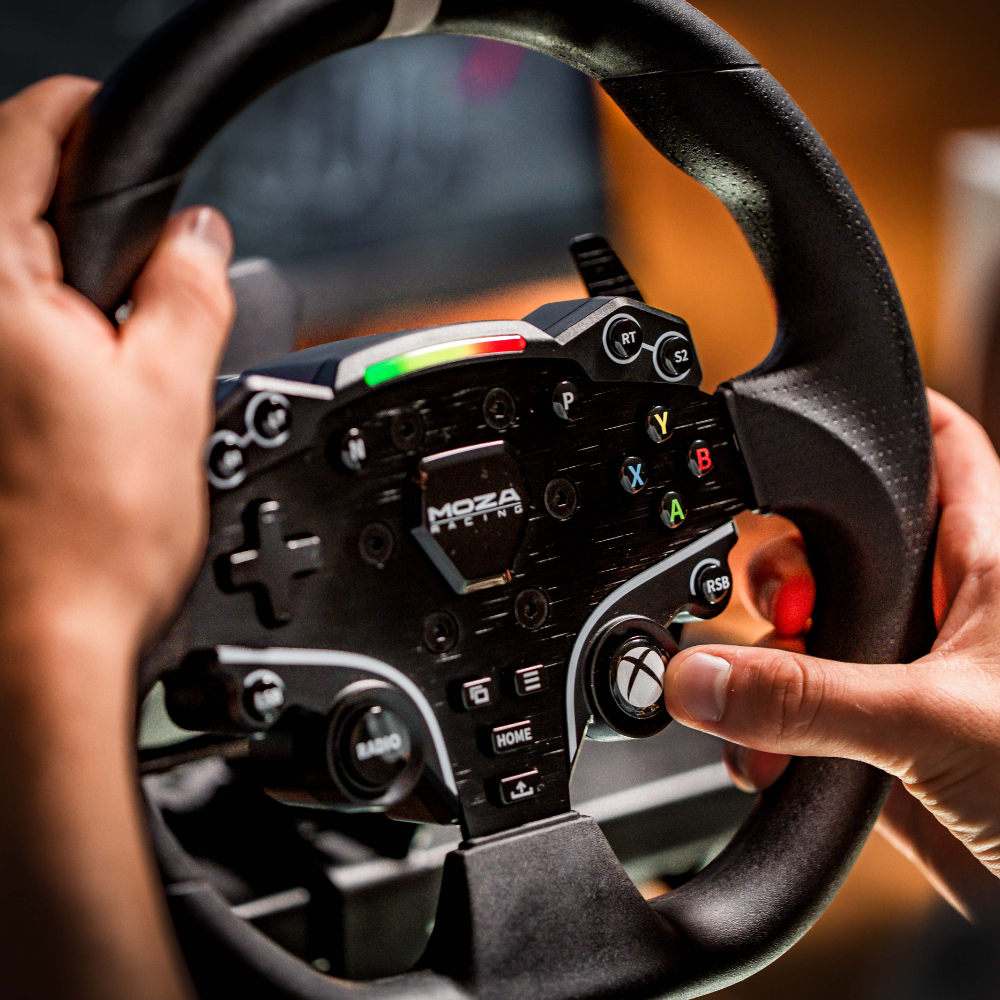

ES Steering Wheel
for Xbox
 Grips ISF PU
Face Plate Material Aluminum Alloy
Shifter Paddle Material Aluminum Alloy
Size 280mm
Buttons 22
RPM LED Light 10 High Brightness LED RGB Beads
Intelligent Telemetry Supported
Fully Adjustable RPM LEDS through MOZA Pit House Supported
Release Method MOZA Quick Release

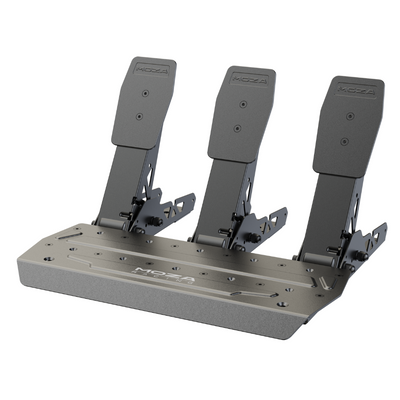

SR-P Lite Pedals
 Material High-strength Steel
Plate Material High-strength Steel
Color Black
Throttle Sensor Hall Sensor
Pedal Spacing Adjustable
Pedal Plate Height Adjustable
Pedal Input Adjustment Supported
pedal Input Reversal Supported
Pedal Output Curve Adjustment Supported
Anti-slip Pad Included
